This extended round style instant garage is the ultimate in storage space. It’s great for vehicle protection and storage, equipment and material storage, workshop areas, and more! The heavy-duty galvanized finish on all our steel frames delivers maximum strength and long life. We place customer satisfaction first at MDM, which is why we use the easy bolt-together design with pre-drilled and cut frames.

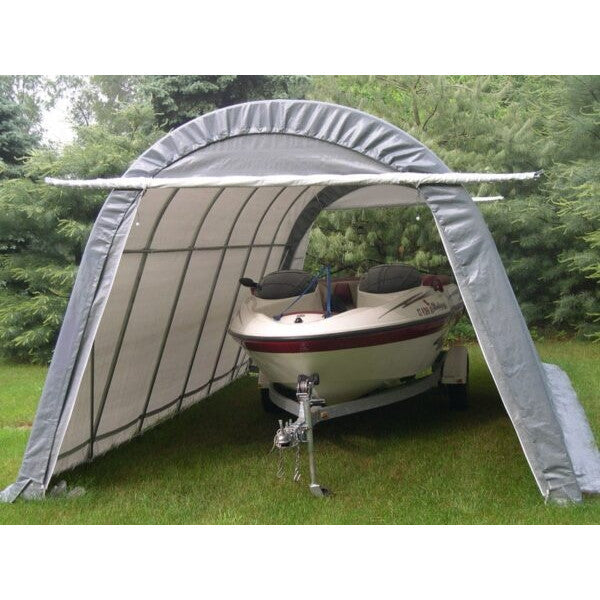

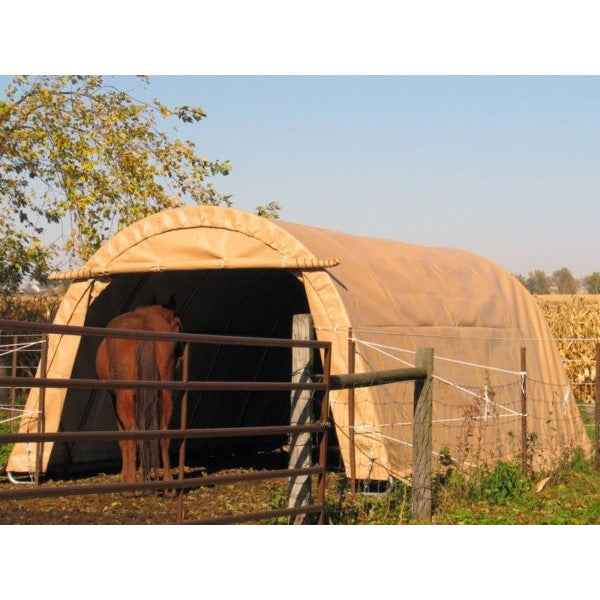

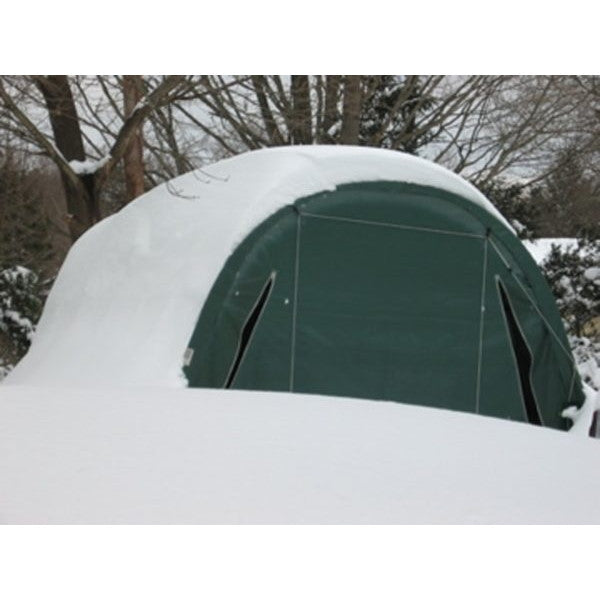

This storage solution measures 14 feet wide by 24 feet long and 10 feet high. It’s great for vessel storage, large vehicles, large livestock shelter, and all your other storage needs. The rounded style is built for strength as rain and snow easily roll off this design. This instant garage comes in forest green, grey, and tan color options.

Included

• 10 oz. UV Treatment Cover
• 2 Double Zipper Doors- 12’W x 7’8″H (9’6″W at highest point)
• 8 Cable Earth Anchor Kit
• 1-5/8 Galvanized Steel Frame
• Roll Up Door Kit for front door included
• Ventilation Kit - No
• Warranty - Free 2 Years

PRODUCT DETAILS

Details

Exclusive Features

• Heavy-Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
• Easy Bolt Together Design – All Pre-drilled & Cut
• Wind Brace Support on Both Sides
• Two(2) Double Zipper Doors with Bottom Pockets
• One (1) complete Roll-up Door Kit
• Protective Plastic Tube End Caps – All Open Ends
• Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
• Quick Assembly Wrench included
• Heavy Duty Poly Rope for Main Cover Tie Down
• Heavy Duty Grommets on Cover & Doors

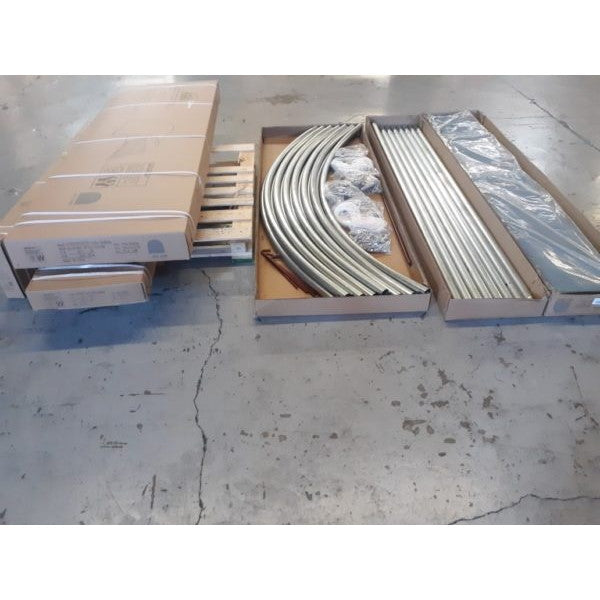

• Two Box Shipment
• Eight (8) permanent anchors included
• Installs in 3 hrs.

Standard Specifications

• Nominal Size: 14’ Wide x 24’ Long x 10’ High
• Arches: Seven (7) on 48” Spacing 1-5/8” diameter frame members
• Standard End Door Size: 13′ Wide (bottom) x 7’8″ High
• Outer Colors: Green, Gray, or Tan
• All Interiors: Bright White Only
• Shipping Weight: 350 lbs shipped in Two (2)boxes Shipped via Motor Freight
• Pallet Dimensions: 40″W x 93″ L x 20″
• Box Dimensions 1: 92″ Long x 15″ Wide x 7″ High
• Box Dimensions 2: 74″ Long x 29″ Wide x 6.5″ High
• Main Cover: UV Protected Fabric Backed Poly Material 10 oz. Weight. 24 Mil. thick.
• Fire Retardant Standard: Main Cover & Doors meet CPAI -84 Section 5
• Anchors: Eight (8) 36” Anchors with U-Bolts & Drive Rod Std.

• Product Spec Sheet
• Assembly Manual
